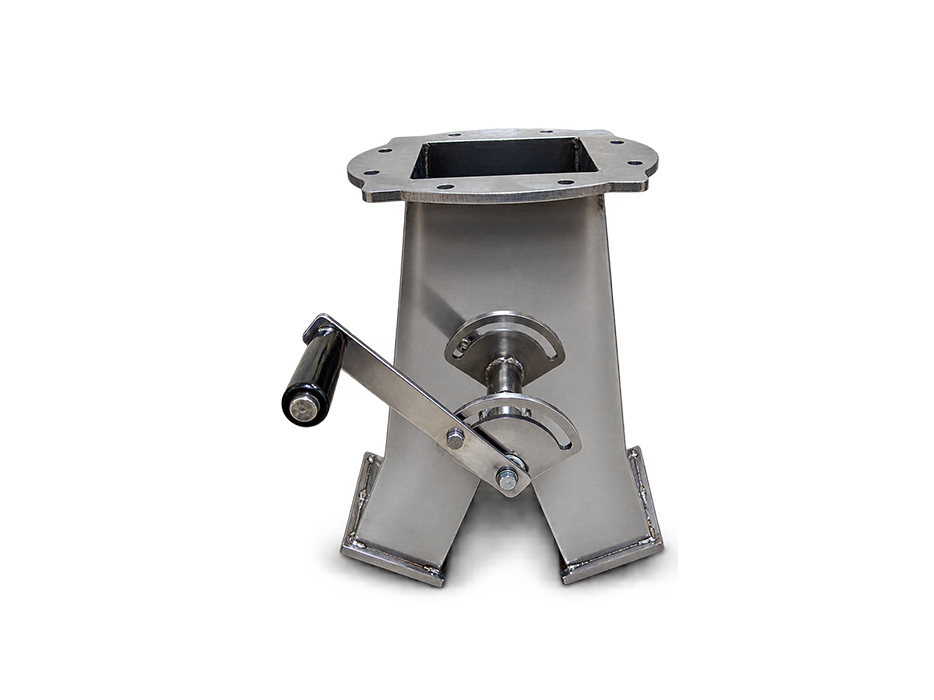

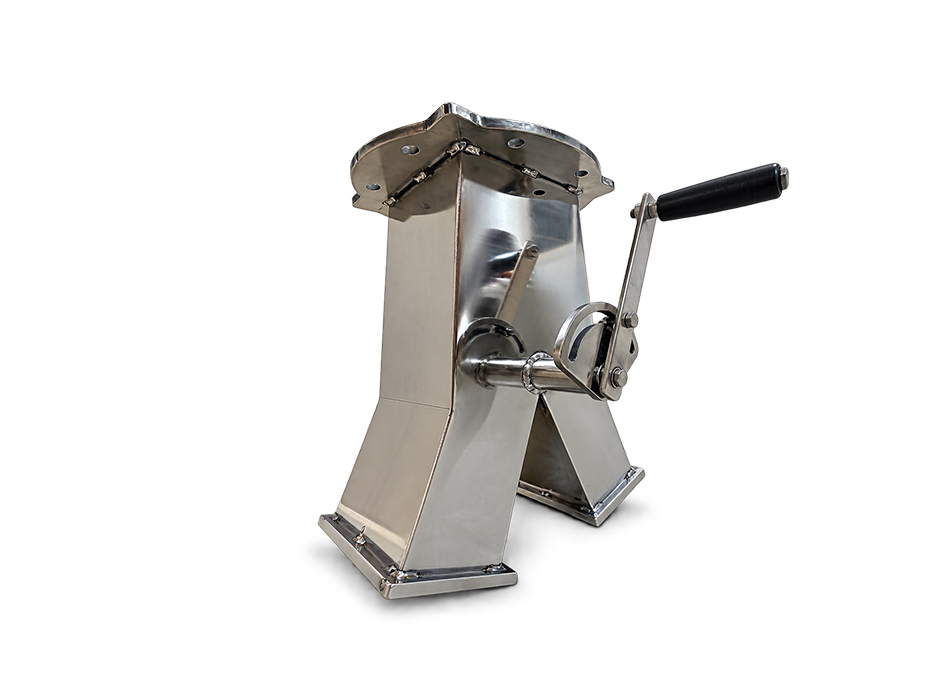

Diverter Valves (2-Way / 3-Way)
Diverter Valves (2-Way / 3-Way)

Diverter Valves (2-Way / 3-Way)

Precision Material Routing for Heavy-Duty Applications

Engineered for the reliable diversion of bulk solids, powders, and granules, Fibros Diverter Valves ensure uninterrupted material flow across multiple process lines. Whether splitting a single feed into two or three destinations, or converging multiple lines, our diverter valves are built to eliminate bottlenecks, minimize cross-contamination, and withstand highly abrasive environments.

Request a Quote
  • Technical Specifications
  • Features
  • Industry Applications
Configurations 2-Way (Y-Type, Pant Leg, Straight) / 3-Way
Diverter Mechanism Flap / Blade type
Size Range 150mm to 1000mm (Custom dimensions available)
Body Material (MOC) Mild Steel (IS 2062), Stainless Steel (SS304/SS316)
Flap / Blade Material Hardox, EN Series Alloy Steel, Stainless Steel
Flange Standards ANSI, DIN, IS (Square or Round transitions available)
Operating Temperature Standard up to 150°C (High-temperature builds up to 350°C+ available)
Actuation Options Pneumatic, Motorized, Manual Handwheel/Lever
Typical Media Cement, Fly Ash, Coal, Cocoa Powder, Grains, Plastic Pellets

  • Optimized Material Flow

  • Wear Resistance

  • Precision Actuation & Control

  • Dust-Tight Sealing Technology

  • Hygienic & Clean-in-Place (CIP) Capable

  • Cement & Building Materials

  • Power Generation

  • Food & Agriculture

  • Minerals & Mining

  • Plastics & Chemicals
